Description
WinPad W109 IP67 Waterproof 10 Inch Screen 4GB RAM 64GB ROM 1000nits rugged windows tablet pc
1) Windows 10 Operation System
2) USB Type-A/RJ45 Port/RS232 Ports
3) Built-in uBlox M7N GNSS Module
4) IP67 Waterproof
5) 10.1 Inch Corning Gorilla III Screen
6) Intel Z8350 Quad Core Processor
7) 4GB RAM+64GB ROM
8) Removable 8500mAh Battery
9) 1000 Nits Screen/1D/2D/RFID/NFC/Fingerprint Optional
1) Windows 10 Operation System
2) USB Type-A/RJ45 Port/RS232 Ports
3) Built-in uBlox M7N GNSS Module
4) IP67 Waterproof
5) 10.1 Inch Corning Gorilla III Screen
6) Intel Z8350 Quad Core Processor
7) 4GB RAM+64GB ROM
8) Removable 8500mAh Battery
9) 1000 Nits Screen/1D/2D/RFID/NFC/Fingerprint Optional

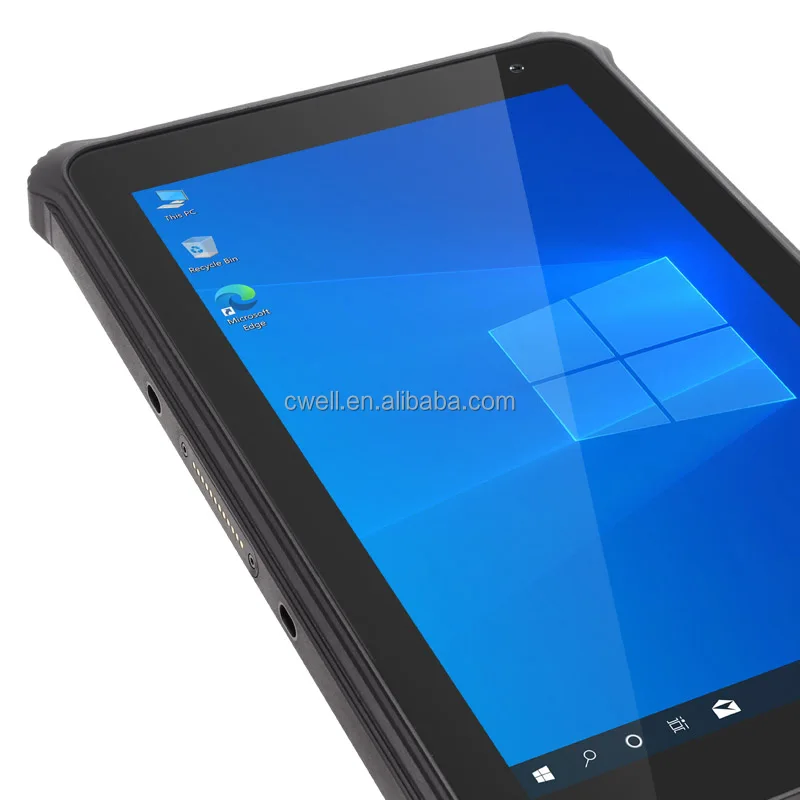

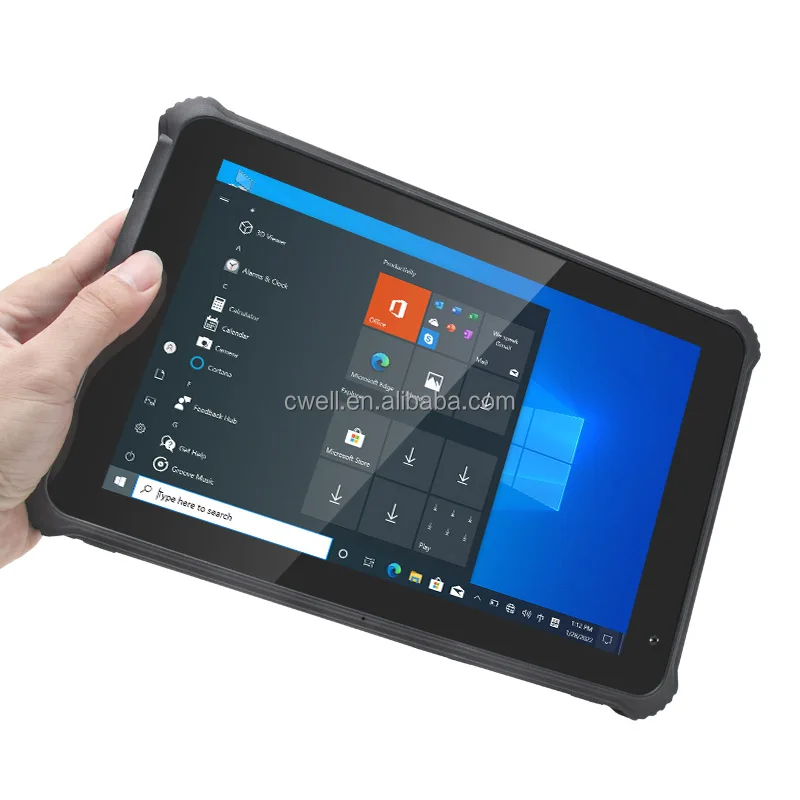

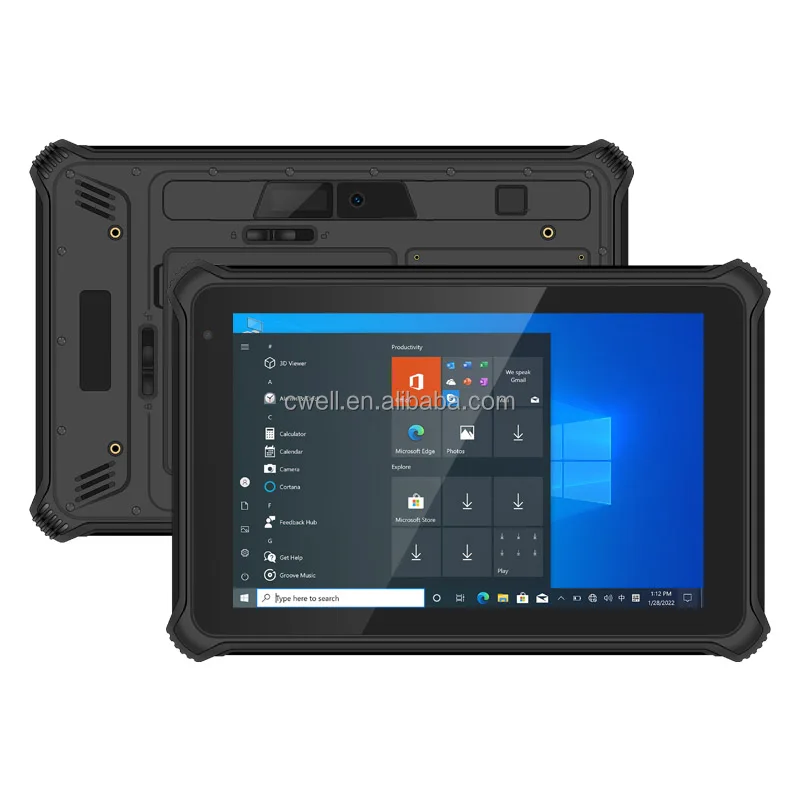

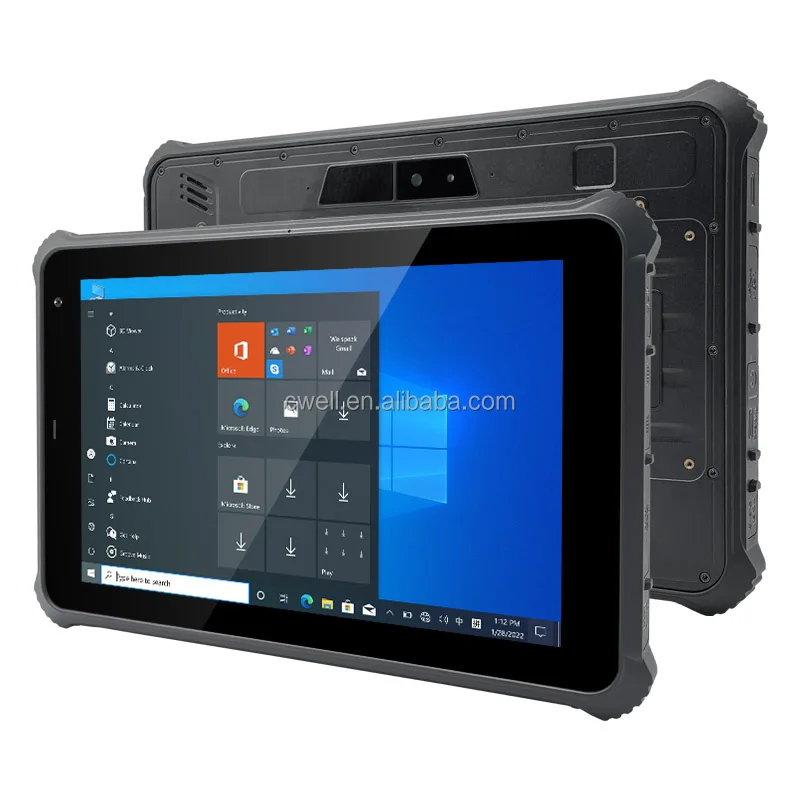

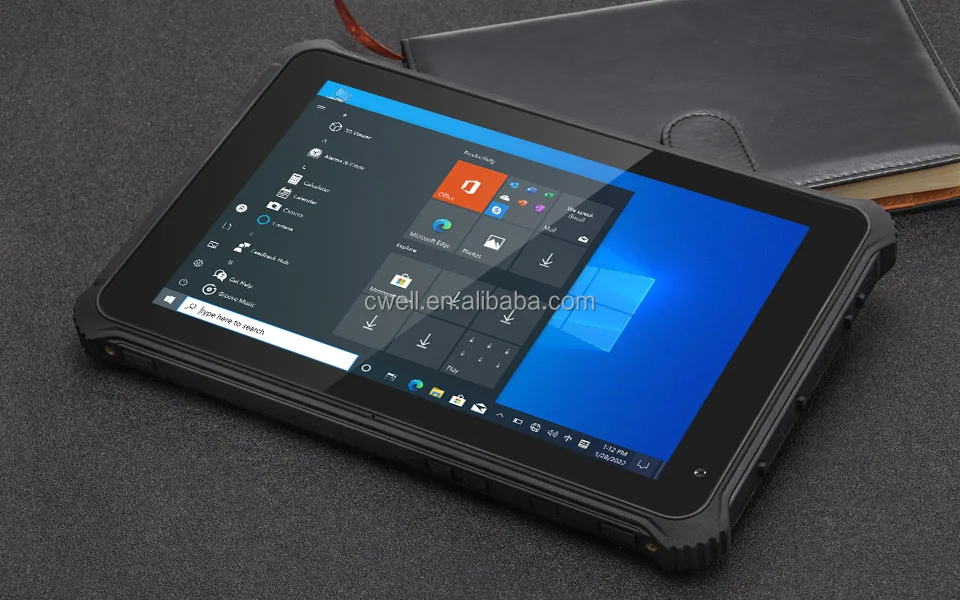

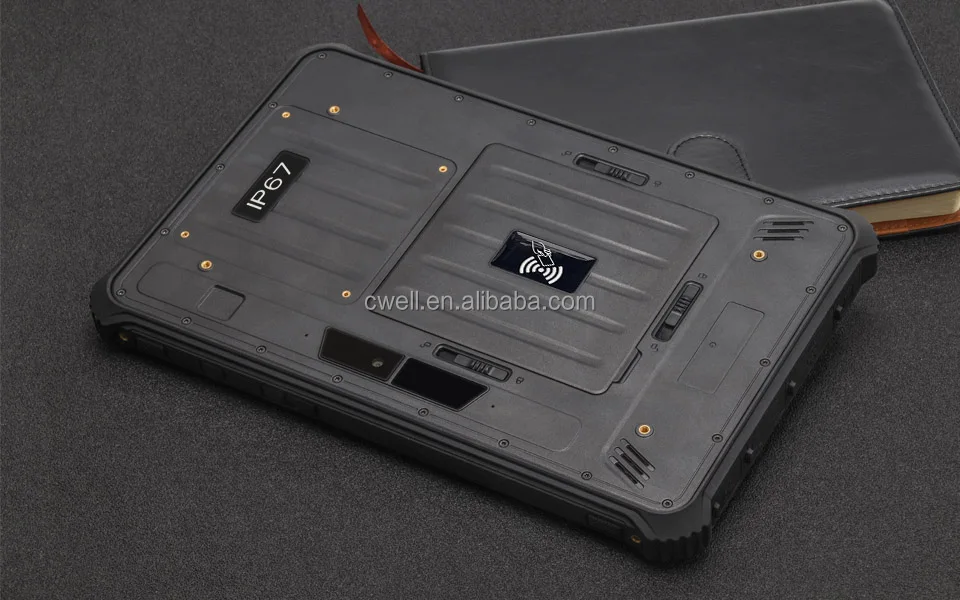

Product Photos
Product Description
|
BASIC INFO
|
||
|
Model No.
|
WinPad W109
|
|
|
Operating system
|
Windows 10 home (Win 10 pro, Win 10 IOT optional)
|
|
|
Dimension
|
277.48*182.74*21.5mm
|
|
|
Weight
|
1155g
|
|
|
Material
|
PC+TPU
|
|
|
Color
|
Black (can be customized)
|
|
|
Language
|
Multi-language
|
|
|
HARDWARE
|
||
|
Display
|
10.1 inch Corning Gorilla III IPS capacitive touch screen, 1280*800px, 450cd/㎡
|
|
|
Processor
|
Intel Cherry Trail Z8350 quad core, 1.44GHz ~ 1.92GHz; GPU: Intel HD Graphics Gen8
|
|
|
RAM
|
4GB RAM
|
|
|
ROM
|
64GB ROM (32GB/128GB ROM optional), support TF card up to 256GB maximally
|
|
|
Camera
|
Rear camera: 5MP; Front camera: 2MP
|
|
|
Battery
|

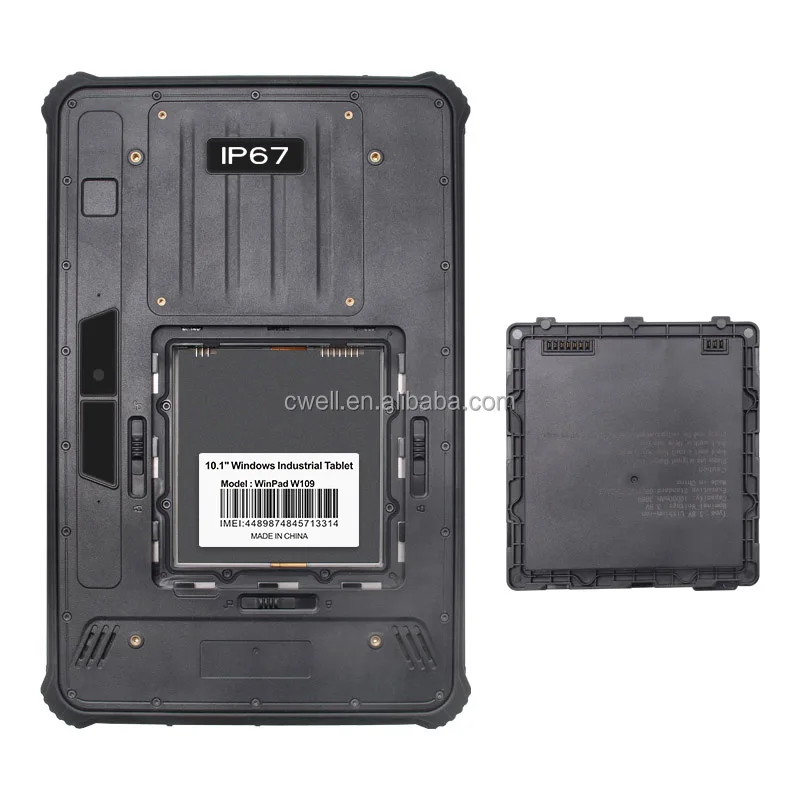

Removable 3.8V/8500mAh Li-ion battery
|
|
|
Sensor
|
Gravity sensor
|
|
|
Speaker
|
*2, 1.2W/8Ω
|
|
|
Receiver
|
*1
|
|
|
Mic
|
*2
|
|
|
Keys
|
Power key, Volume+/-, P-Key, F-Key
|
|
|
Indicator light
|
*1
|
|
|
NETWORK & CONNECTIVITY
|
||
|
Bands
|
2G: GSM 900/1800MHz
|
|
|
3G: WCDMA 850/900/2100MHz
|
||
|
4G: FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE B38/B40/B41
|
||
|
WiFi
|
IEEE 802.11a/b/g/n/ac, support 2.4G/5.8G dual-band WiFi
|
|
|
BT
|
V4.0(BLE), ~10 meter
|
|
|
GNSS
|
Built-in U-blox M7N module, support GPS/BDS
|
|
|

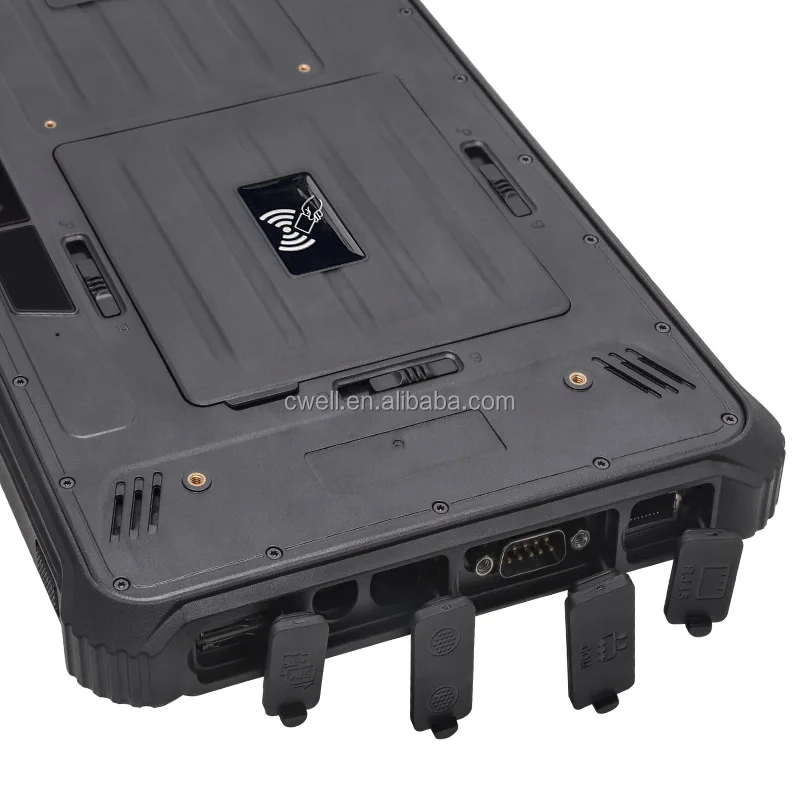

I/O INTERFACES
|
||
|
Micro SIM Slot
|
*1
|
|
|
TF Card slot
|
*1
|
|
|
USB Type-C 2.0
|
*1, Support OTG
|
|
|
USB Type-A 2.0
|
*1
|
|
|
RJ45 Ethernet Port
|
*1, 100Mbps
|
|
|
RS232
|
*1
|
|
|
DC-IN
|
*1
|
|
|
Mini HD-MI
|
*1
|
|
|
3.5mm Audio Jack
|
*1
|
|
|
Pogo Pin
|
*1
|
|
|
CONINVERS
|
RS232/USB/DC5V/CAN BUS optional
|
|
|
OPTIONAL FUNCTIONS
|
||
|
NFC
|
13.56MHz, Support: 14443A/14443B/15693
|
|
|
UHF RFID
|
PR9200, Read distance: 1.5m-3m; Read distance 2: 5m-8m
|
|
|
ID Card Reader
|
Support reading 2th Generation ID card
|
|
|
Fingerprint
|
1: Ordinary industrial fingerprint
2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint |
|
|
1D barcode scanner
|
Zebra SE655
|
|
|
2D barcode scanner
|
Zebra SE2707
|
|
|
Screen
|
800cd/㎡(1920*1200px),1000cd/㎡(1280*800px),Wet hand touch, Glove touch, Active/passive capacitor pen, AG+AF Coating, AR Coating
|
|
|
RELIABILITY
|
||
|
Waterproof
|
IP67
|
|
|
Drop-proof
|
1.2M,Cement floor
|
|
|
Temperature range
|
Operating: -20℃~60℃ Storage: -30℃~70℃
|
|
|
ACCESSORIES
|
||
|

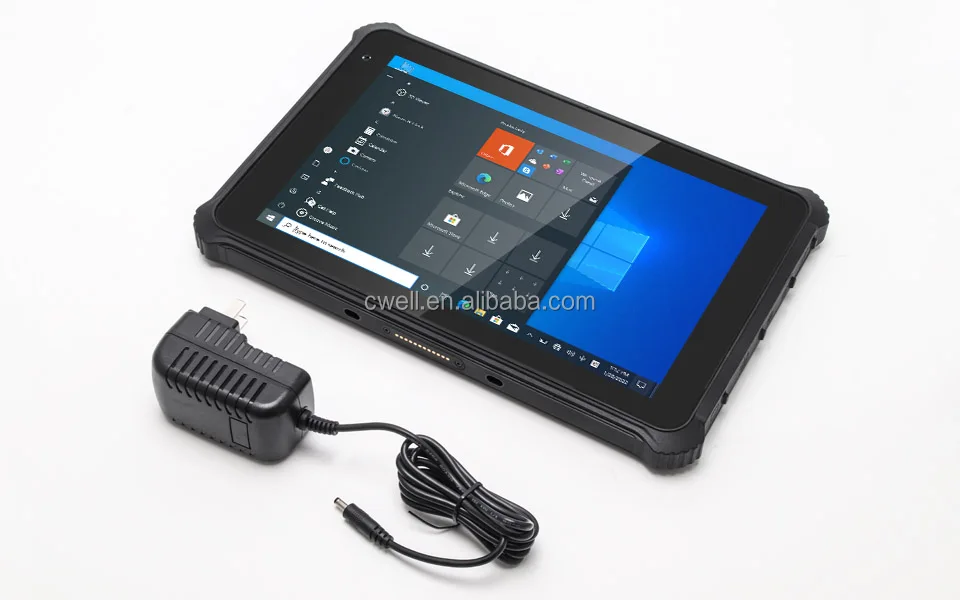

Charger(5V/3A)
|
*1
|
|
|
User Manual
|
*1
|
|
|
Hand strap
|
Optional
|
|
|
Mounted bracket
|
Optional
|
|
|
Standby Battery
|
Optional
|
|
|
Docking
|
Optional
|
|
|
Type-C Cable
|
Optional
|
|
|
OTG Cable
|
Optional
|
|
